Representation 1 Final
Year 1 :: Semester 1
Fall 2021
Experimentation of the assembly of a cube and 3 dimensional space

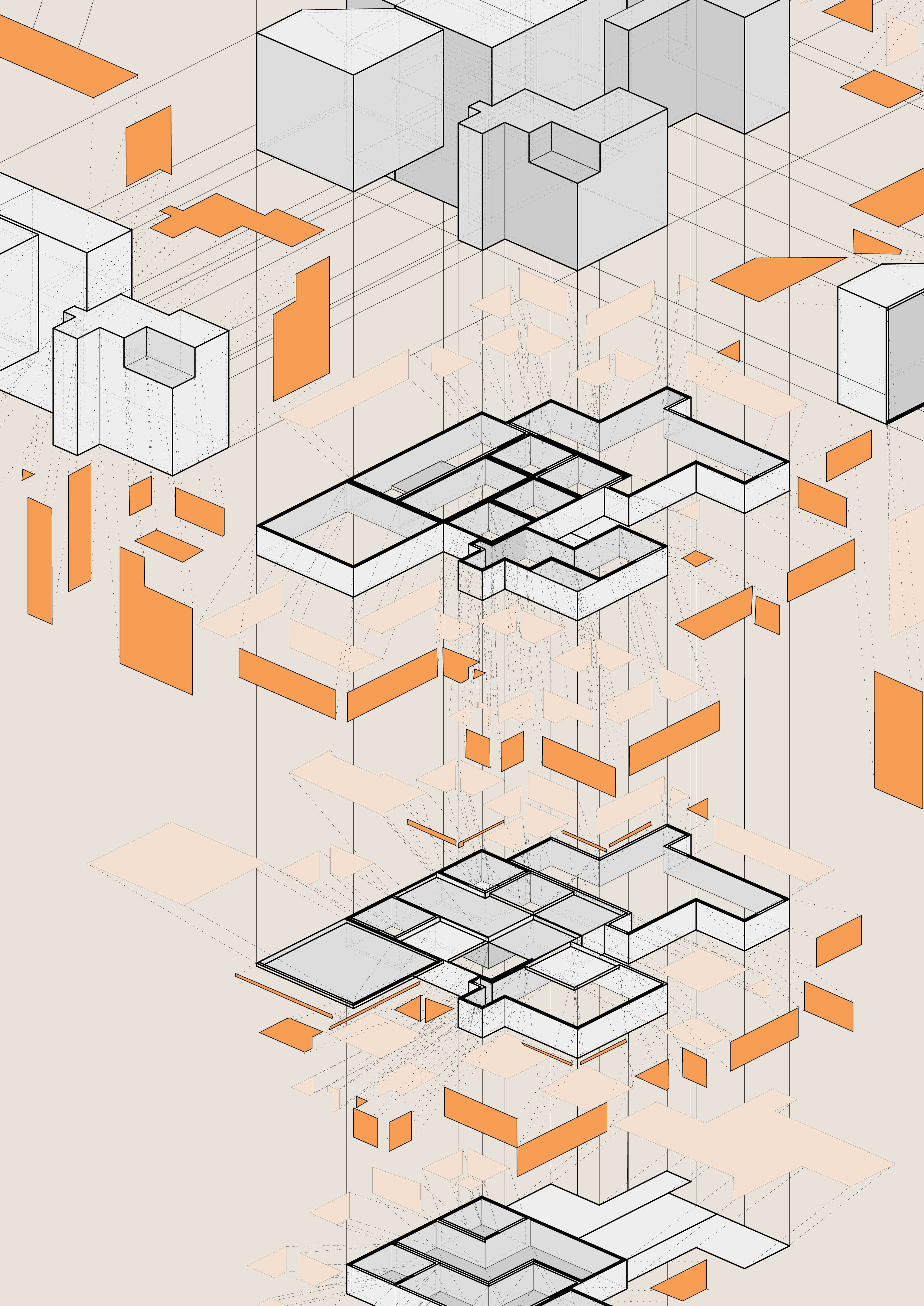

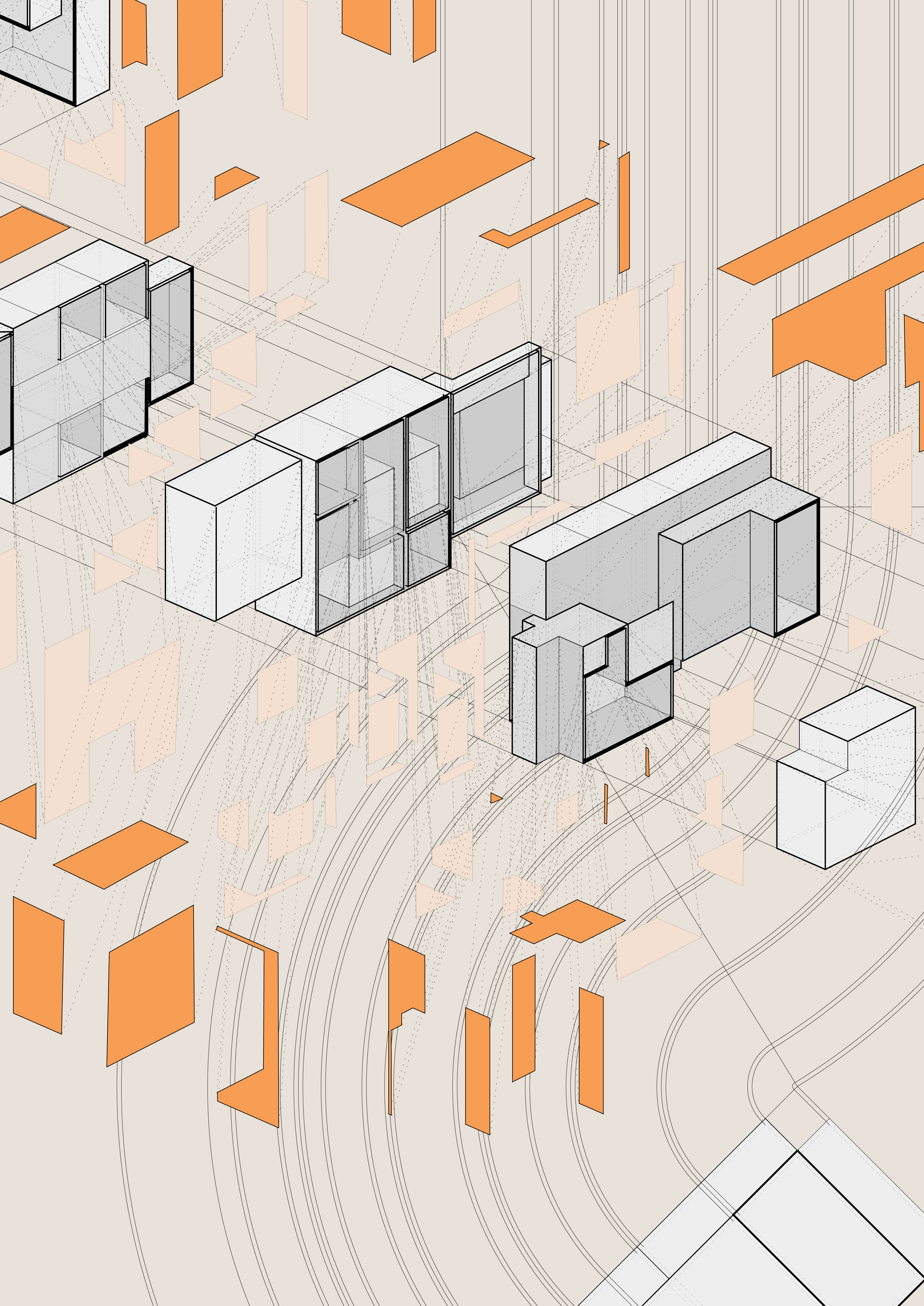

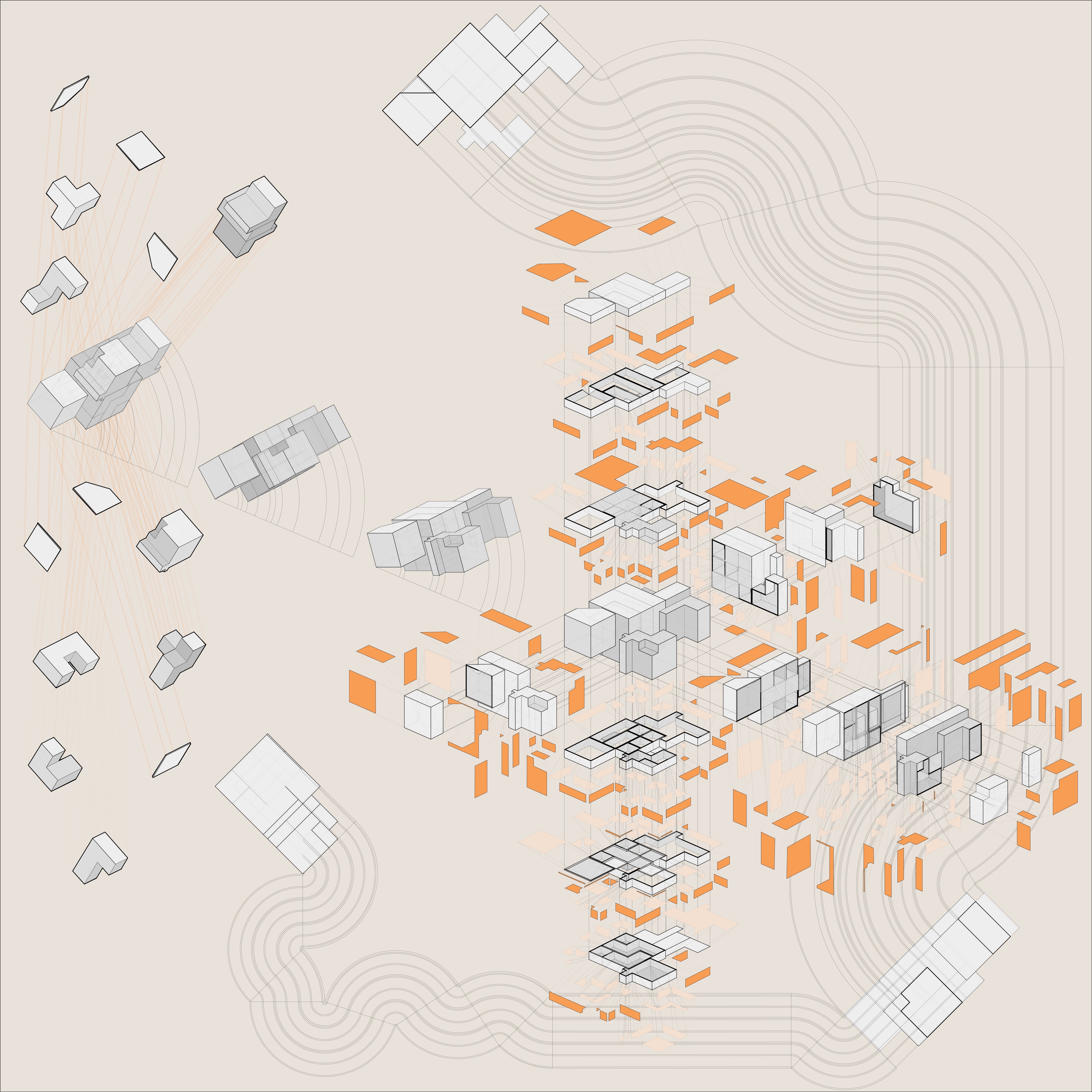

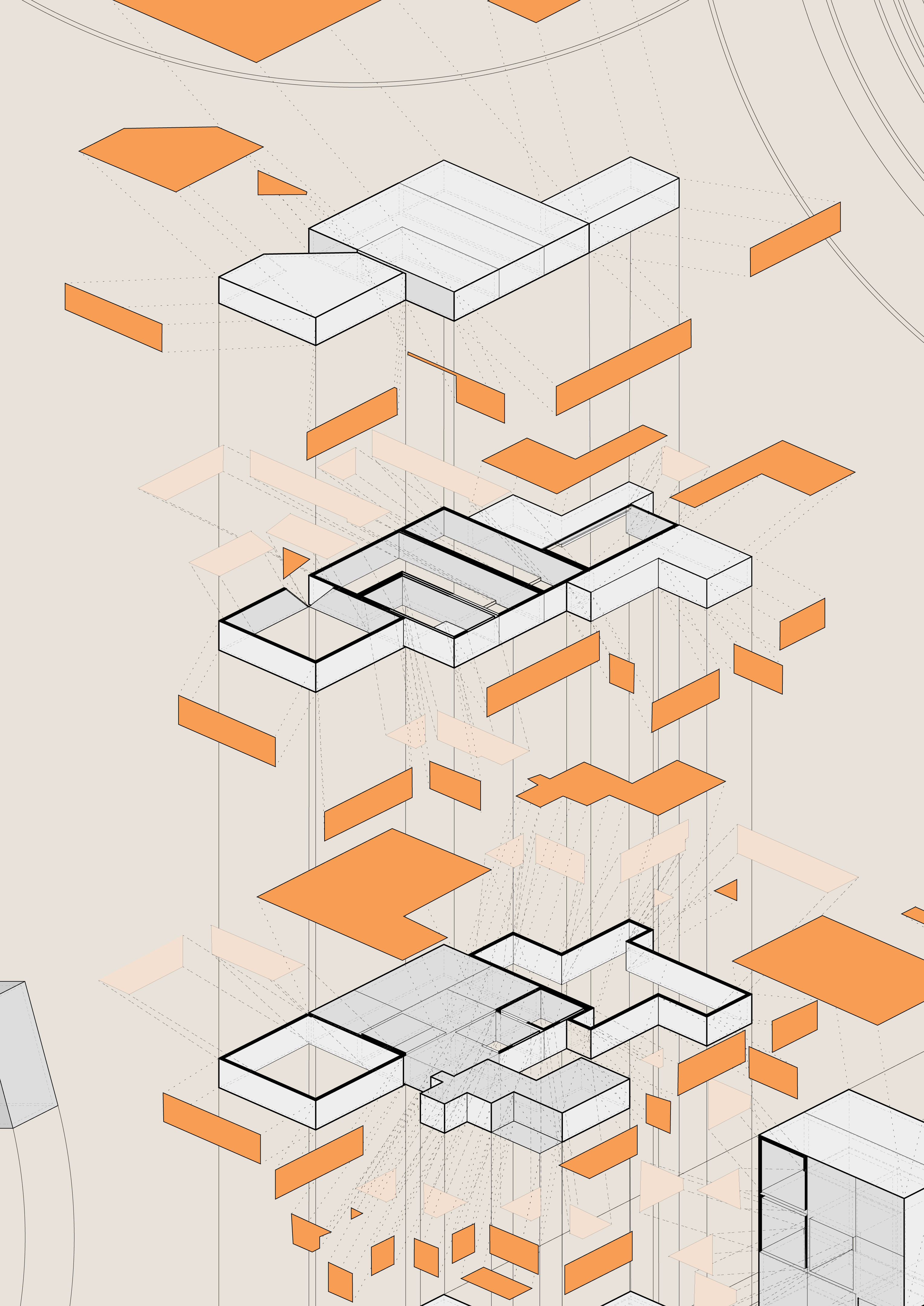

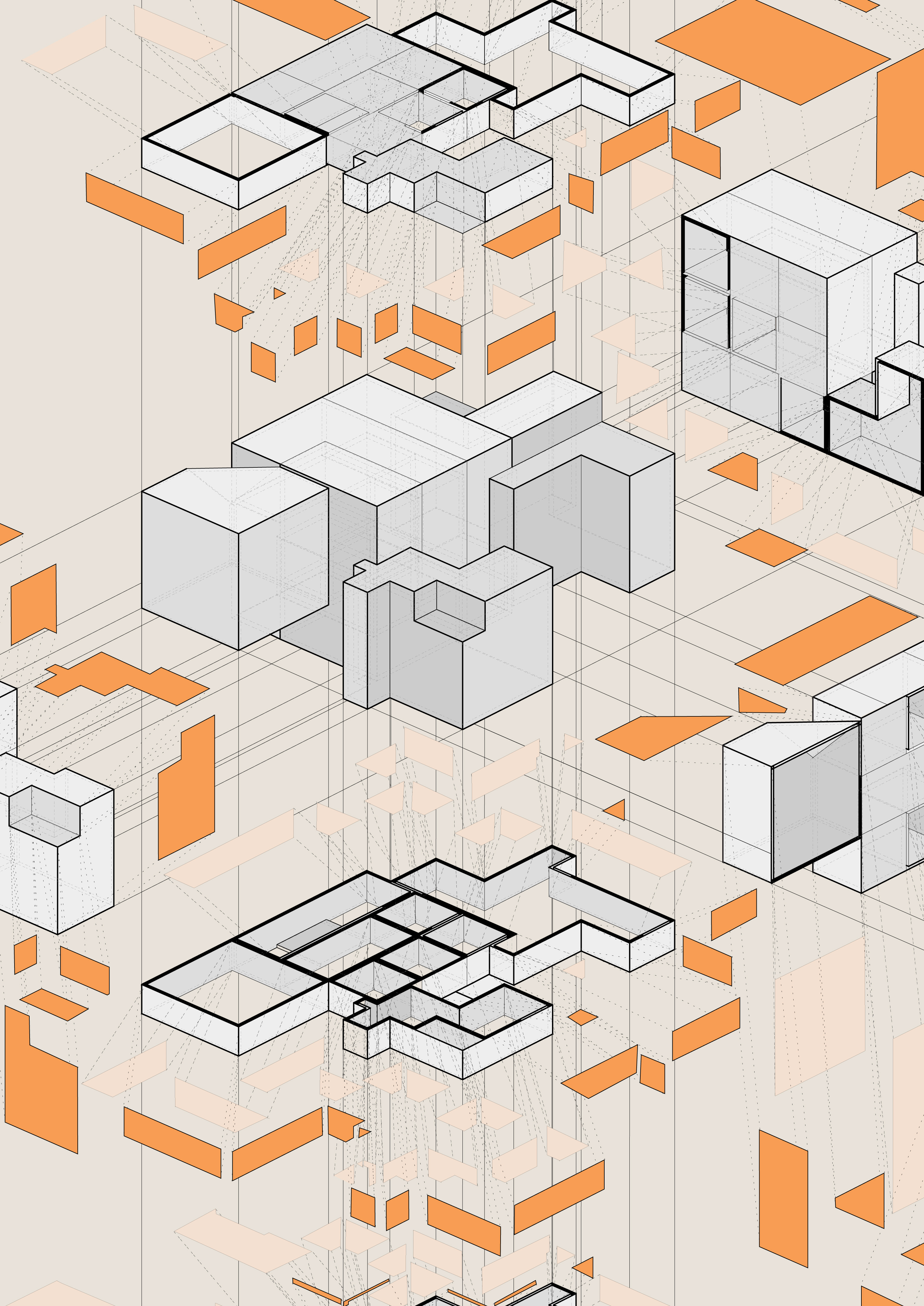

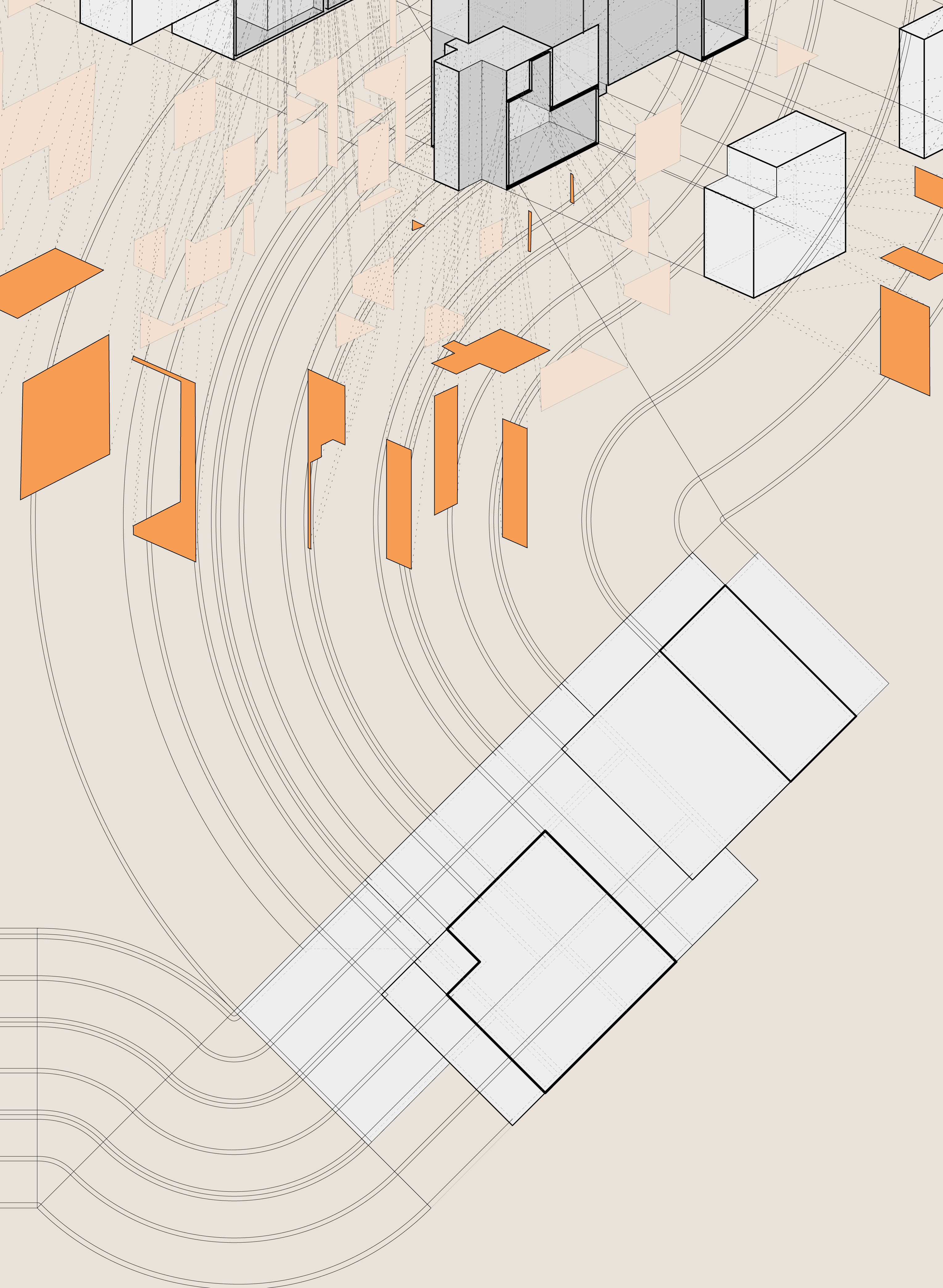

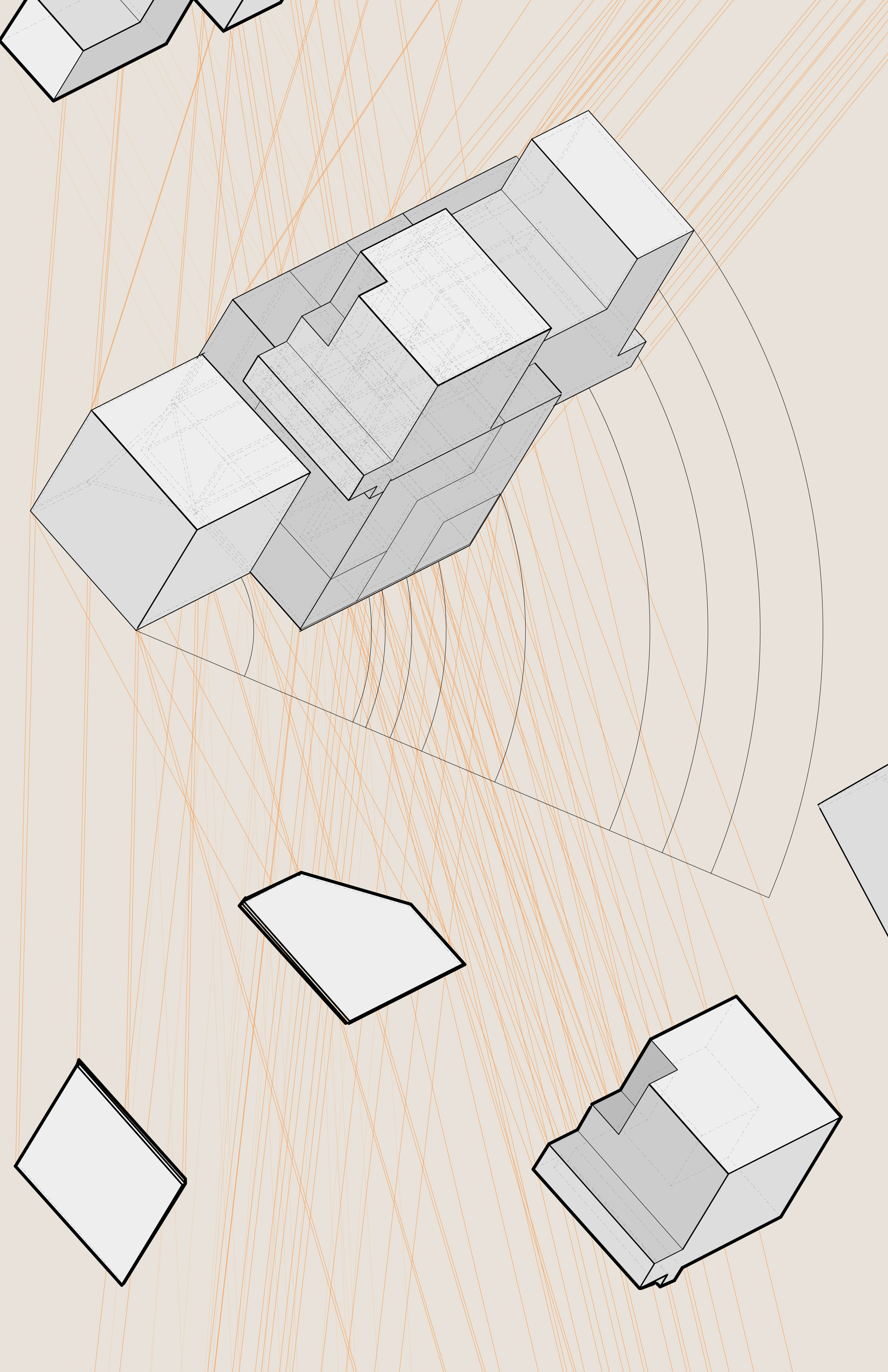

44”x44” collage of horizontal and vertical serial sections, successive auxiliary views, and a plan and elevations of a three piece cube assembly. The concept behind the drawing is explosions and expansion of the assembly, shown by the orange faces representing the exterior faces of each part of the cube, and the beige faces representing the interior faces of each part of the cube.
