Design 102 Midterm
Year 2 :: Semester 2
Spring 2023
Working with Adolf Loos' Raumplan

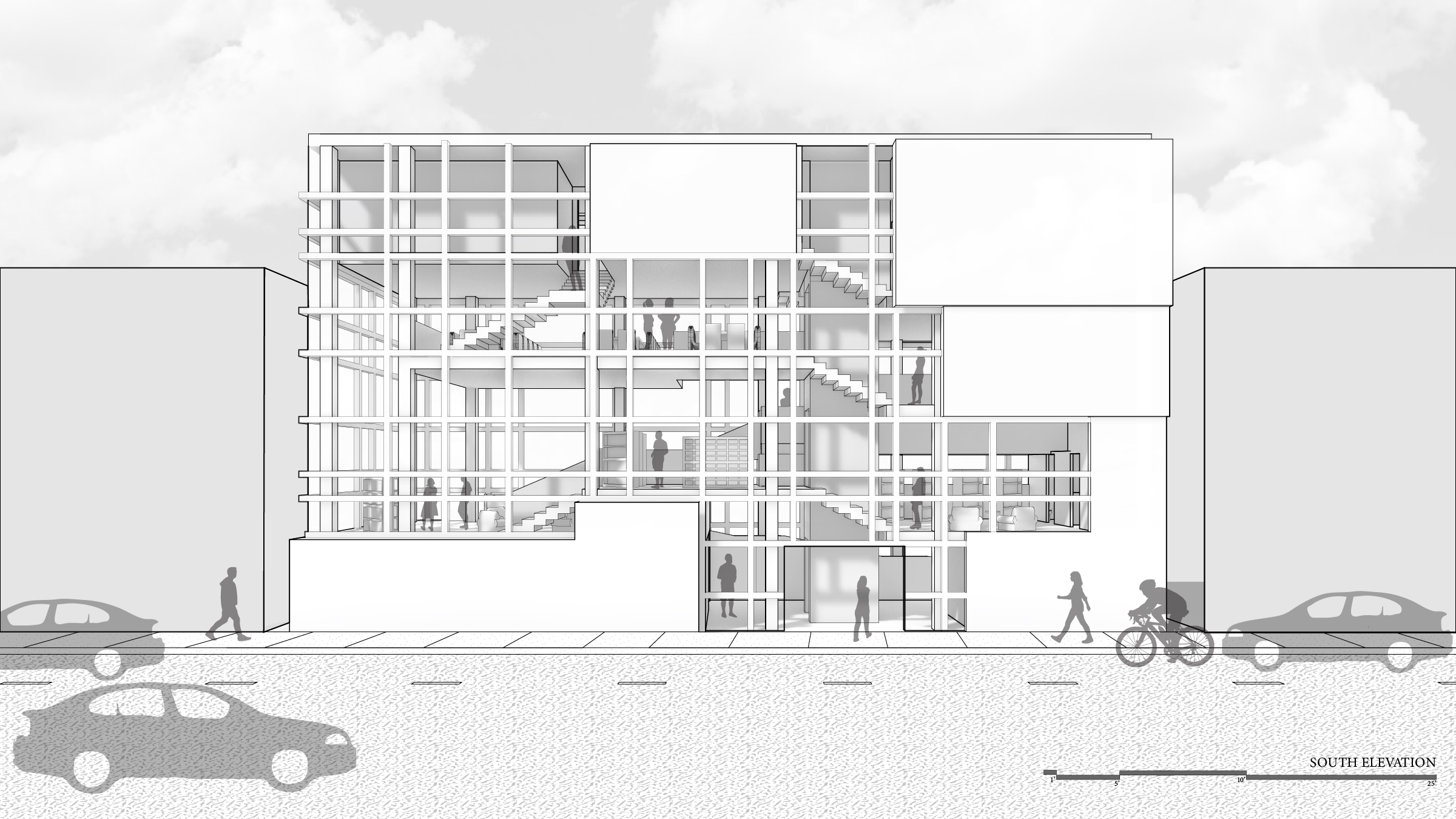

Street view elevation of proposed building (parameters of 70'x20')
Ground floor plan of proposed building (parameters of 70'x20') :: Ground floor includes a theatre, lavatories, and the entrances to the building, the interior ramp, and interior elevator

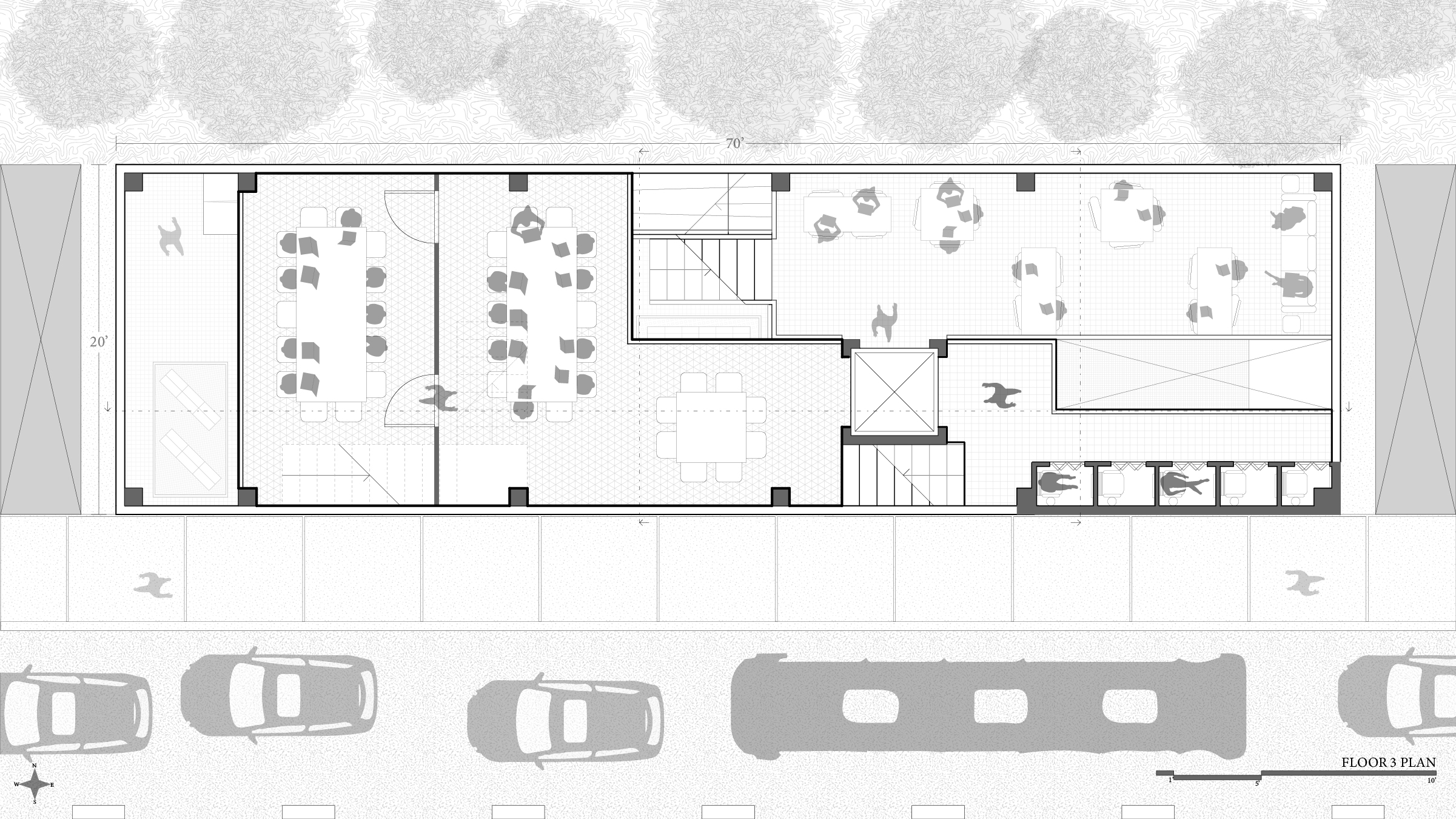

Third floor plan of proposed building (parameters of 70'x20') :: Third floor includes meeting spaces, private viewing booths, a work study area, and leisure/circulation spaces that overlook each other

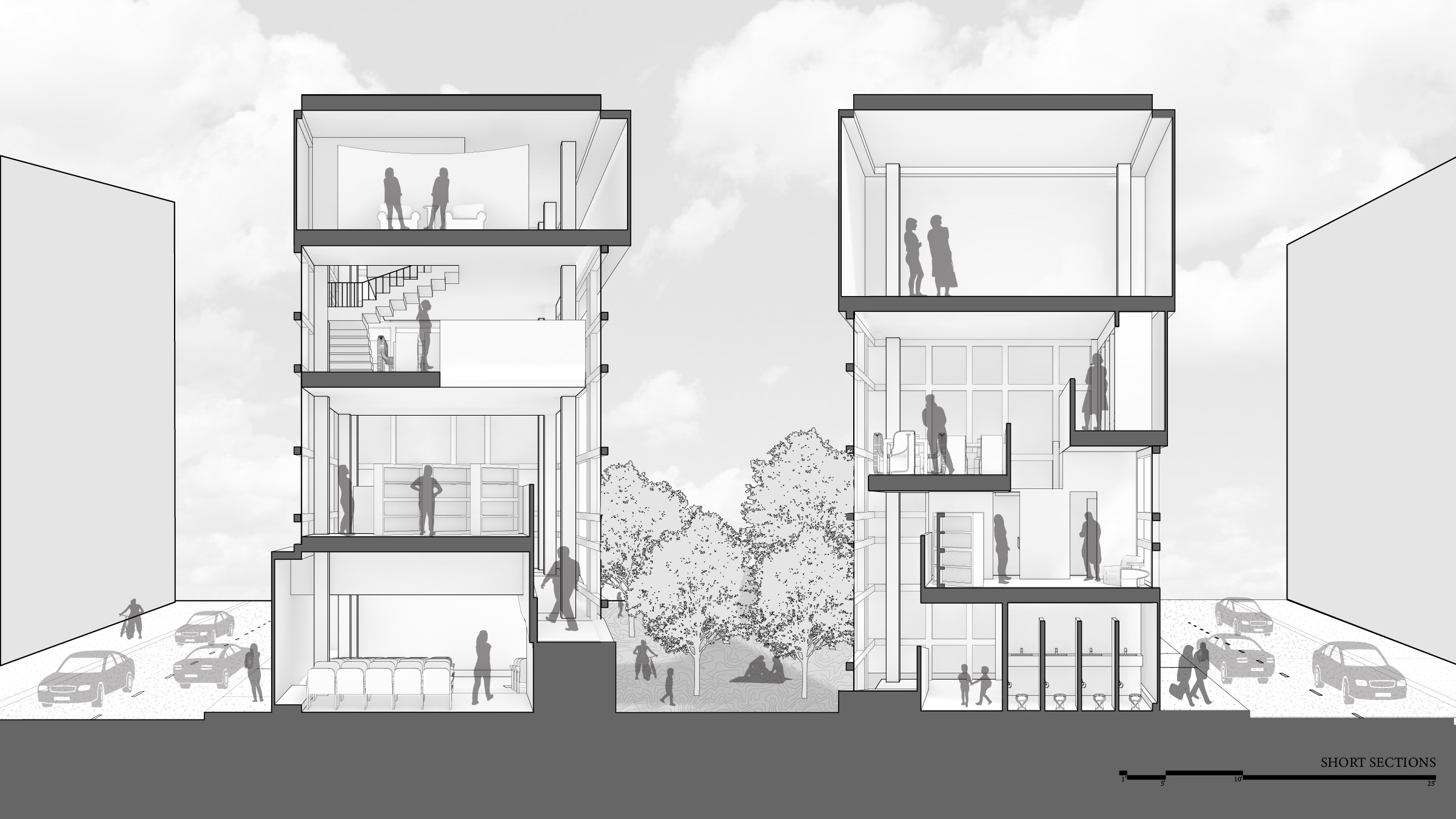

Short sections of proposed building (parameters of 70'x20')

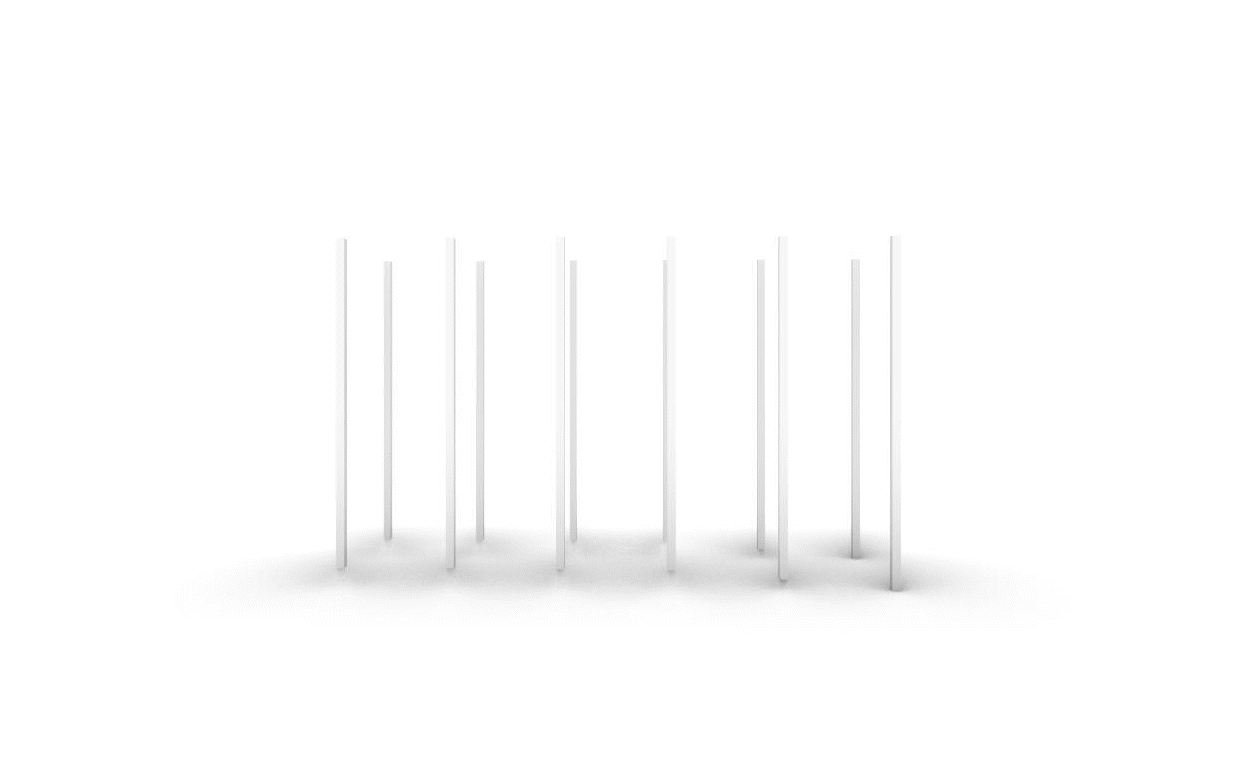

Gif of buildings elements that compose the structure

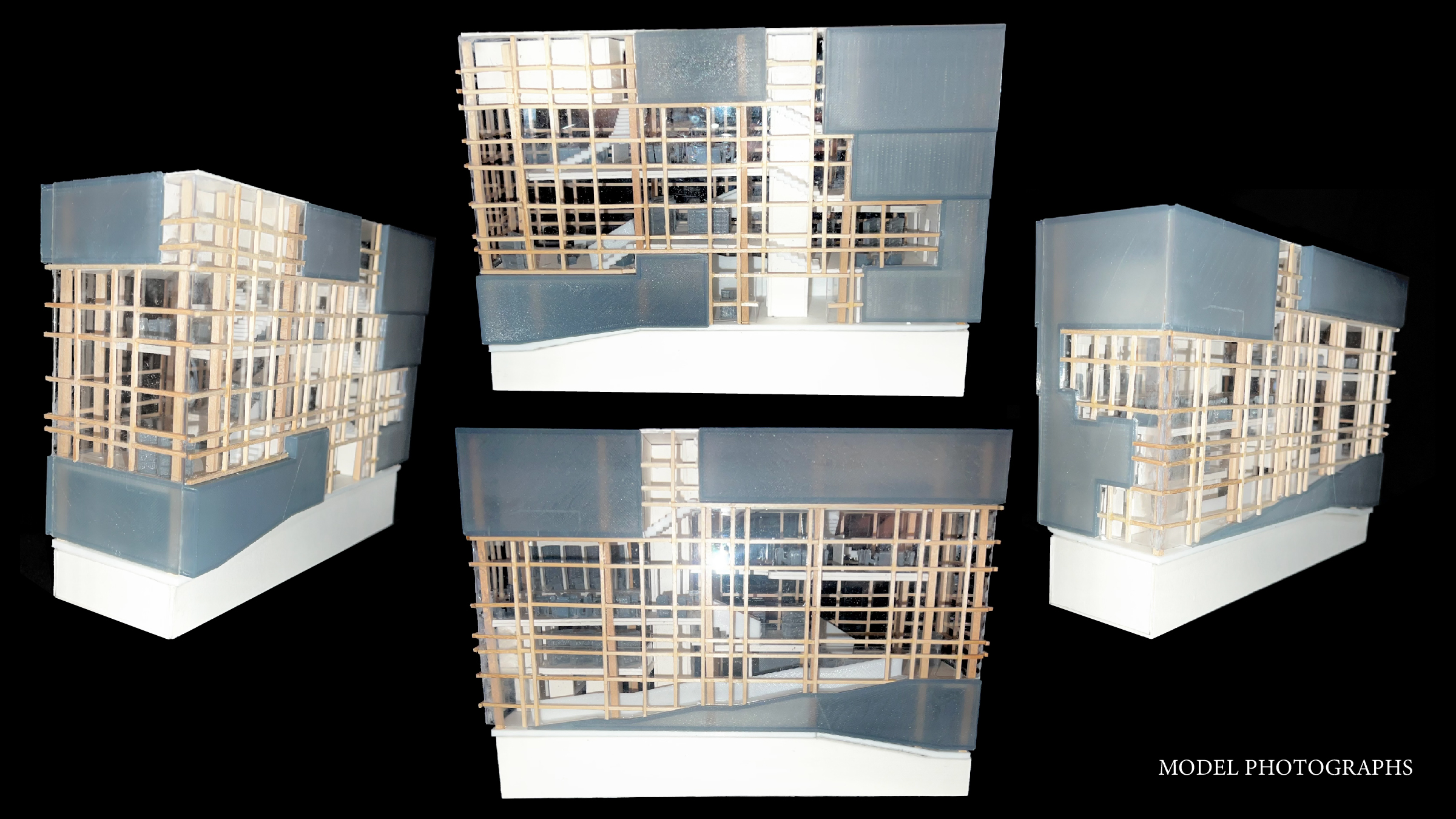

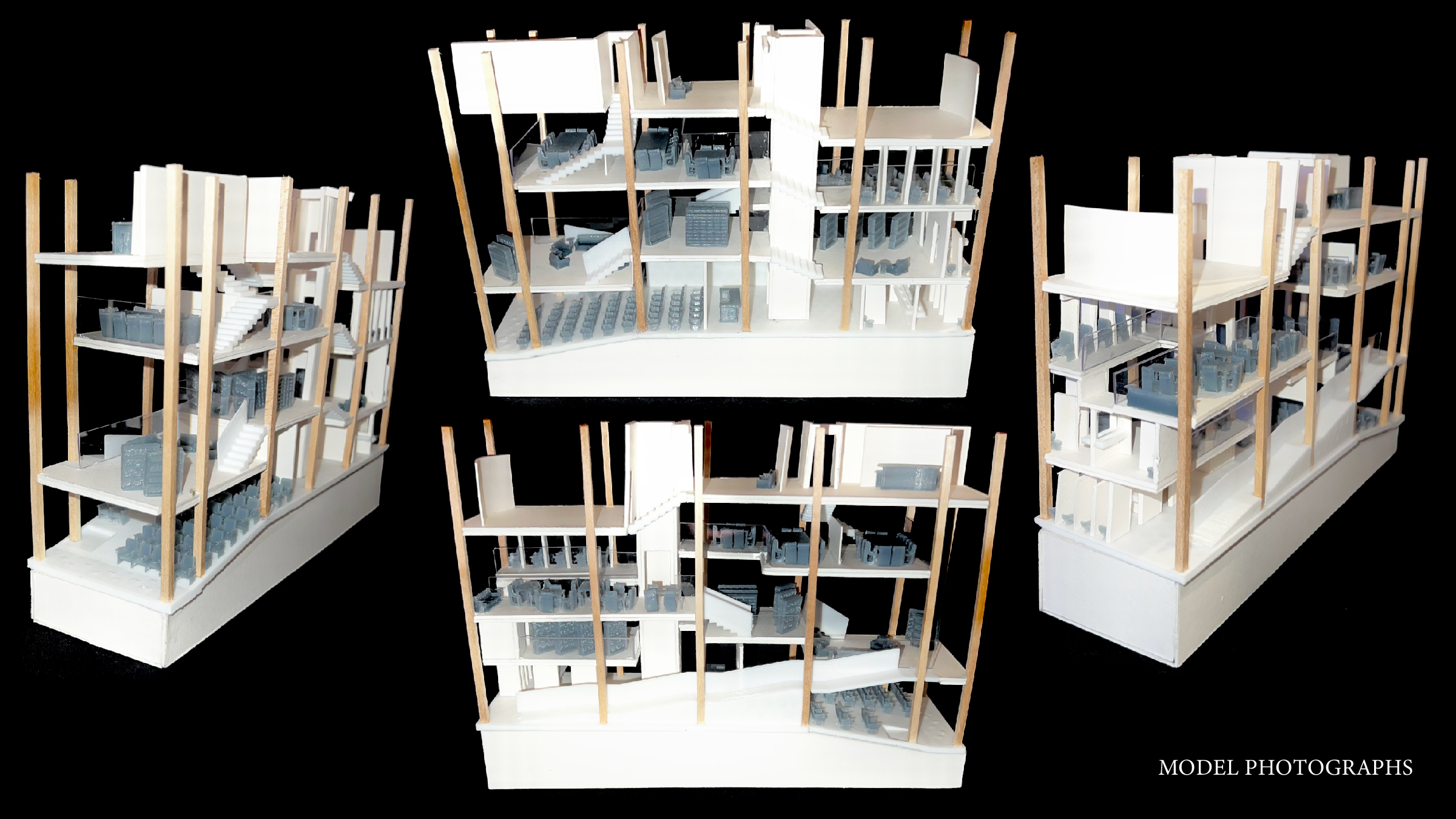

Photographs of Physical Model (with facades on)

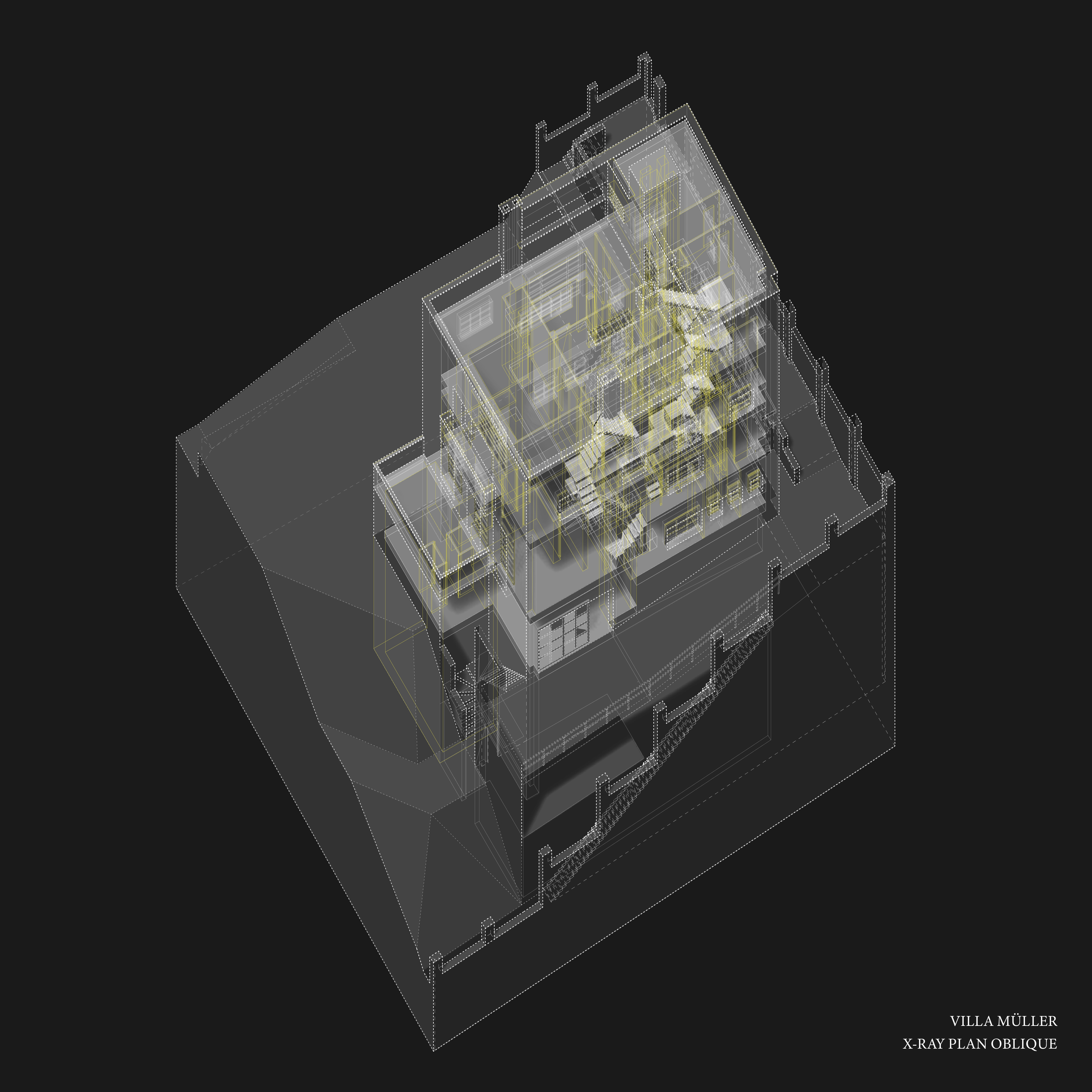

X-Ray drawing of project precedent :: Adolf Lood :: Villa Muller

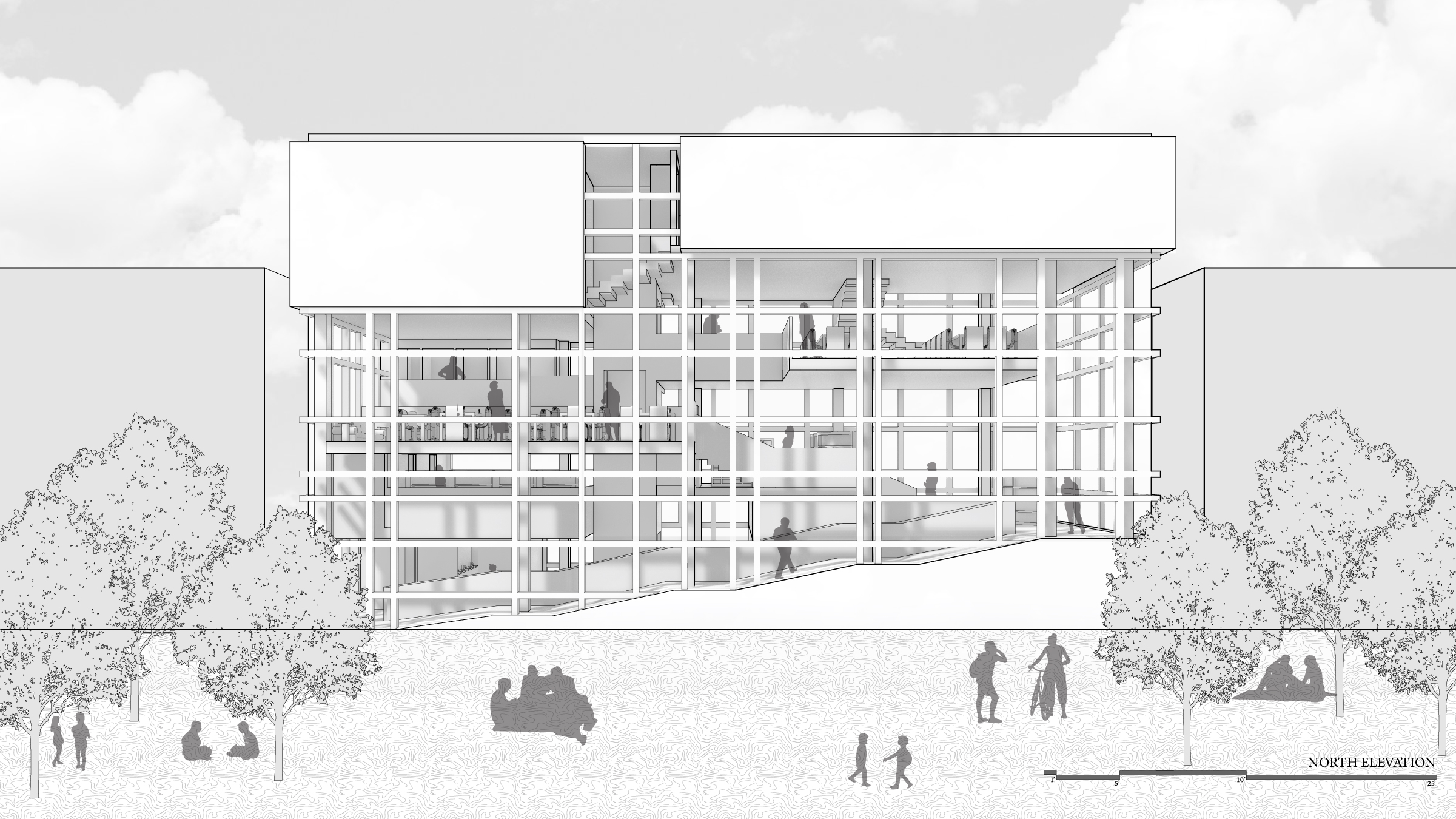

Elevation of proposed building (parameters of 70'x20')

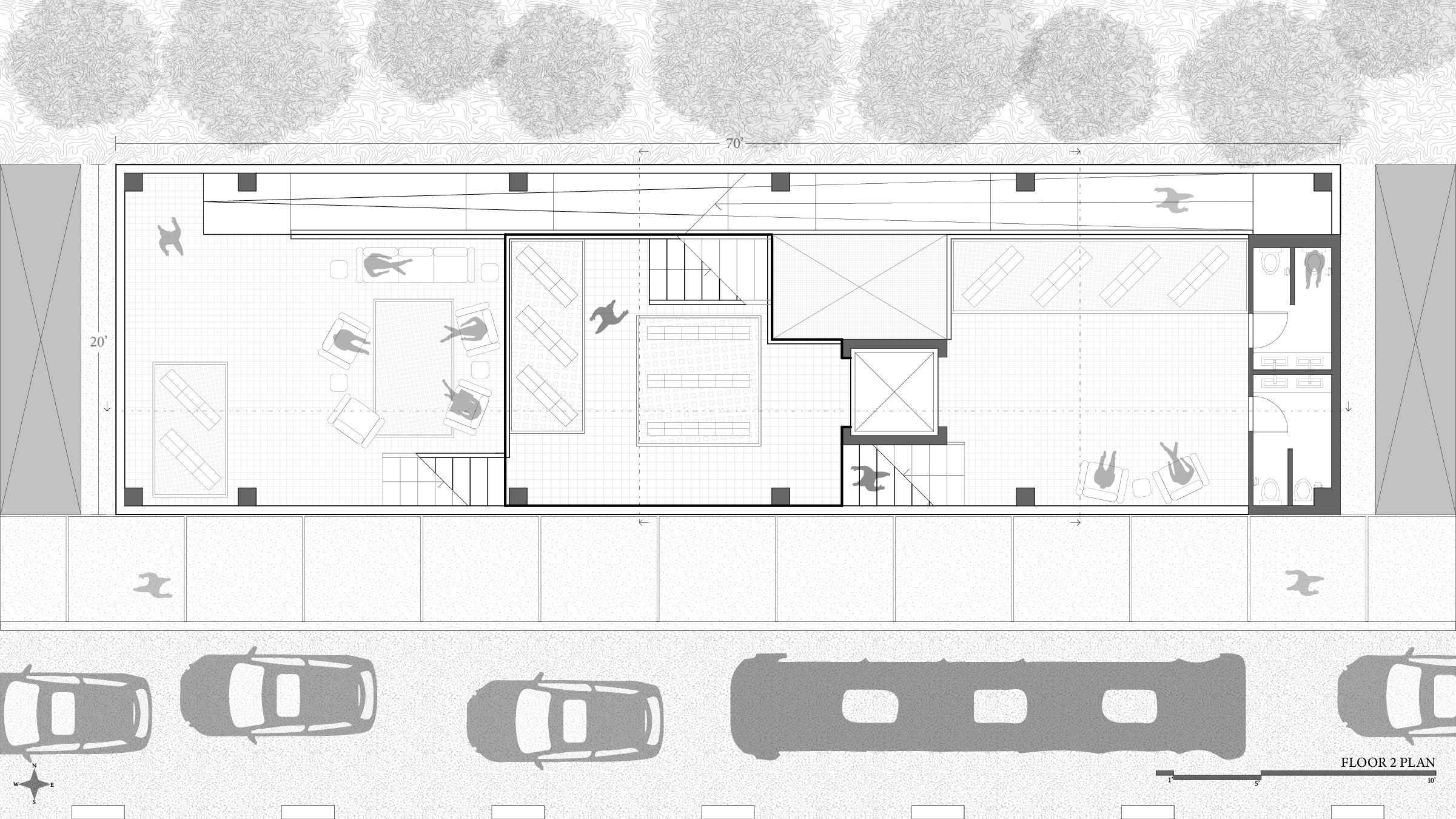

Second floor plan of proposed building (parameters of 70'x20') :: Second floor includes storage shelves for books, CD's, DVD's etc., lavatories, and leisure spaces that overlook each other

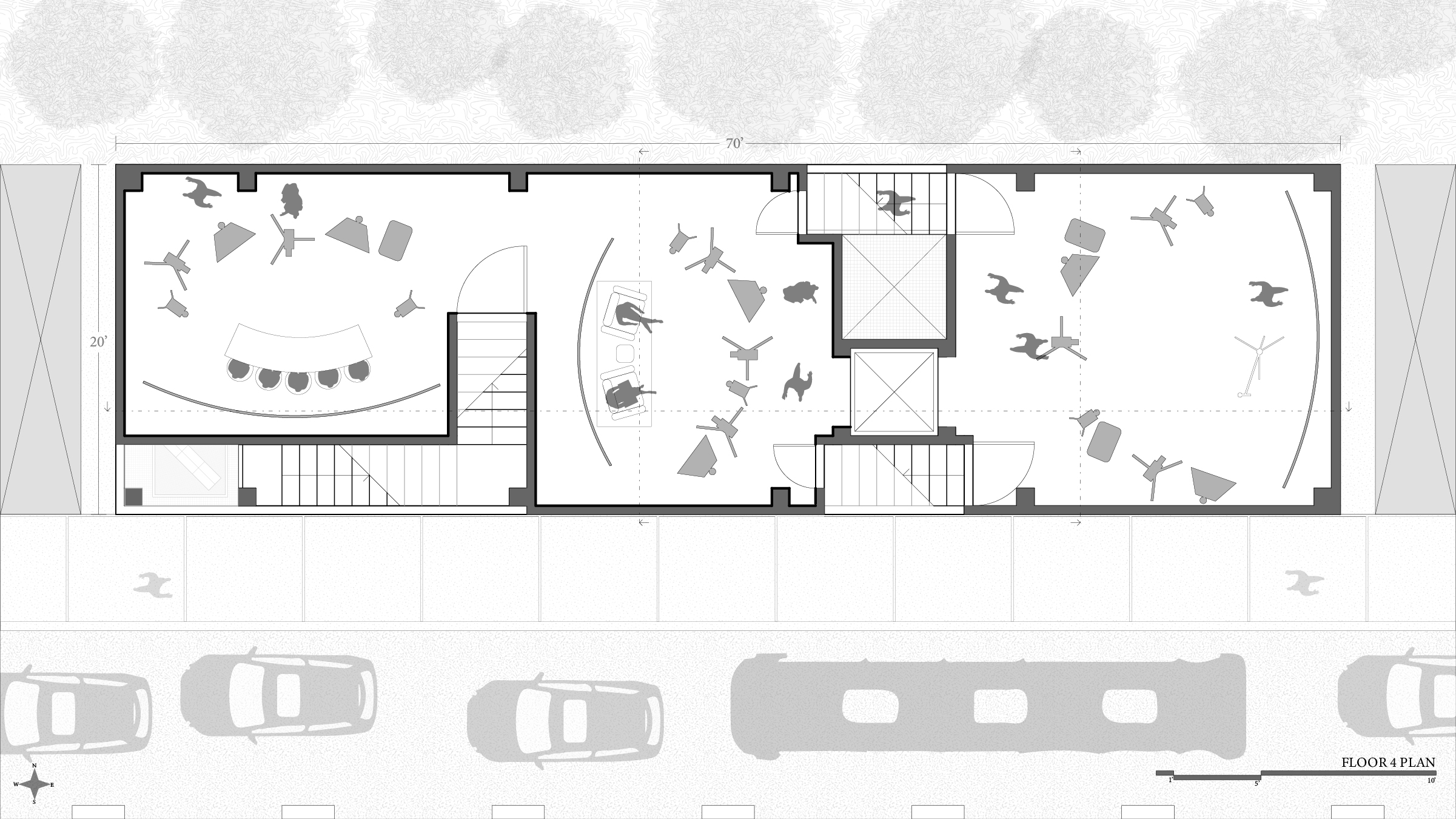

Fourth floor plan of proposed building (parameters of 70'x20') :: Fourth floor includes recording studios

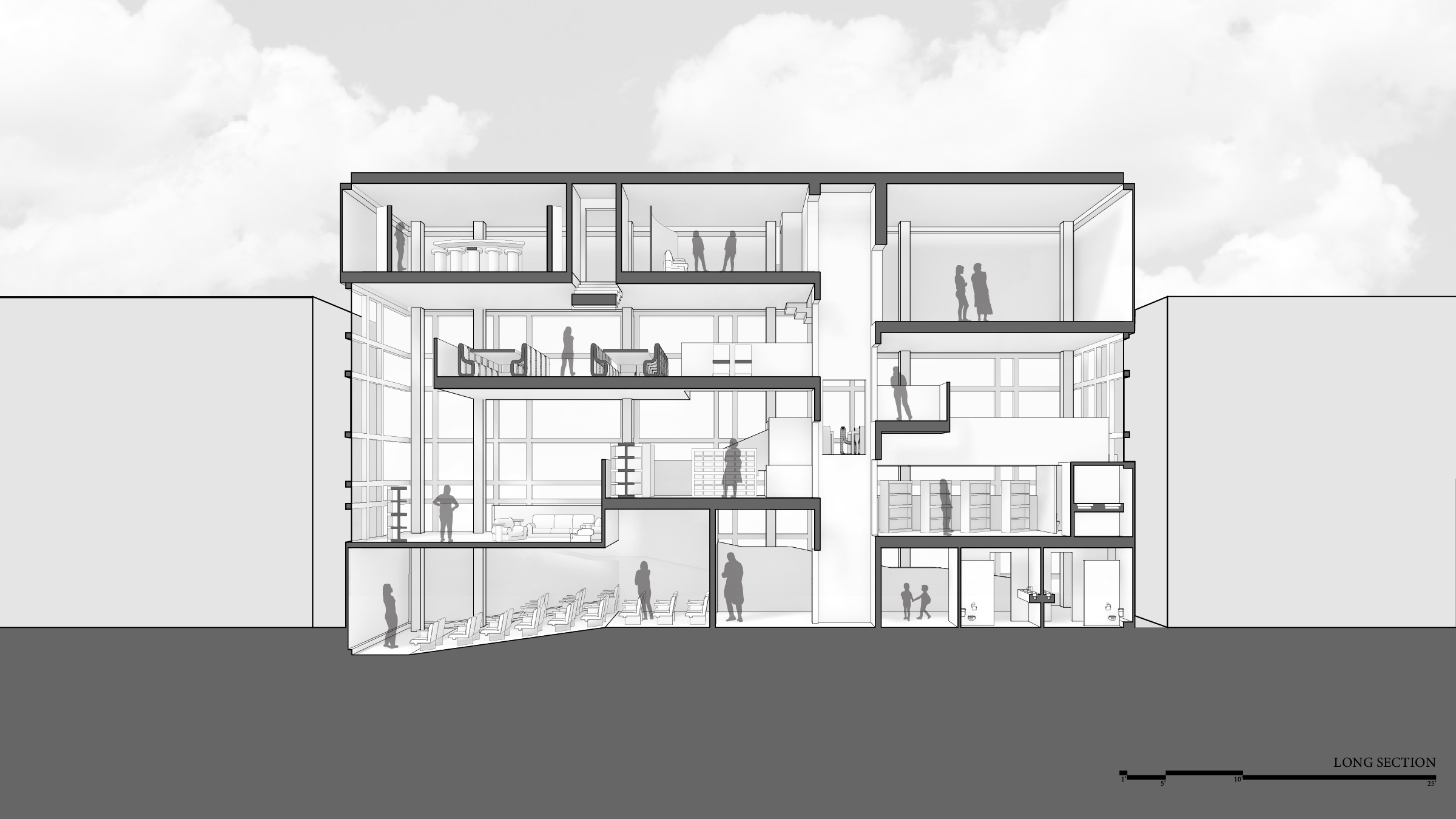

Long section of proposed building (parameters of 70'x20')
Cutaway animation to show the inspiration of the raumplan
Photographs of Physical Model (with facades off)
